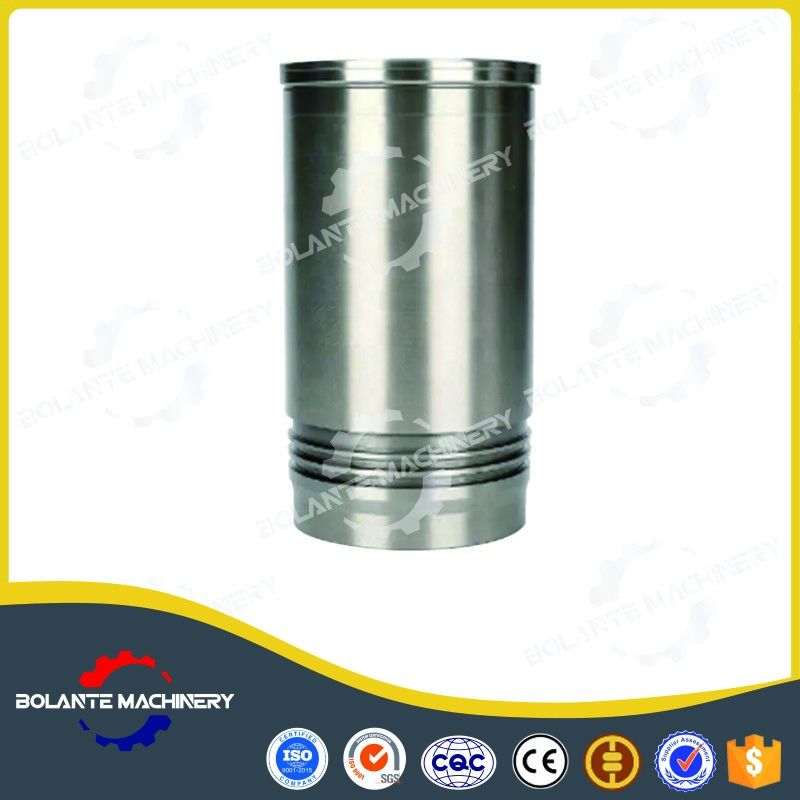

Komatsu Engine Parts Diesel Engine 6D105 6137-21-2210 Cylinder Liner

Name: Komatsu Engine Parts Diesel Engine 6D105 6137-21-2210 Cylinder Liner
Brand: Bolante Power Machinery Co., Ltd
SKU: S6D105, 6D105
Availability: InStock

Product Details

Place of Origin: China

Brand Name: BOLANTE

Certification: ISO/TS16949/SGS/CE

Model Number: S6D105, 6D105

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Komatsu Engine Parts Cylinder Liner, Diesel Engine Cylinder Liner, 6D105 Cylinder Liner


Product Name:	Komatsu Cylinder Liner	Application:	Komatsu Excavator
Engine Model:	S6D105, 6D105	Material:	Steel
Part No:	6137-21-2210, 6136-21-2210, 6137-22-2210	Keywords:	Cylinder Liner, Cylinder Sleeve, Engine Cylinder Liner

Product Name:	Komatsu Cylinder Liner
Application:	Komatsu Excavator
Engine Model:	S6D105, 6D105
Material:	Steel
Part No:	6137-21-2210, 6136-21-2210, 6137-22-2210
Keywords:	Cylinder Liner, Cylinder Sleeve, Engine Cylinder Liner

Product Description

Komatsu Engine Parts Diesel Engine 6D105 6137-21-2210 Cylinder Liner

Komatsu Excavator Cylinder Liner

Cylinder liner is an crucial part of the engine, it is inlaid in the cylinder block and forms combustion chamber together with piston and cylinder head.

Cylinder Liner Functions
1, The cylinder liner bears the side thrust of piston and becomes the reciprocating lead of piston.
2, Transfer the heat of piston assembly and itself to cooling water to make it work at proper temperature.
3, The cylinder liner of two-stroke diesel engine is equipped with air port, which is opened and closed by piston to realize valve distribution.

Our Advantage (Bolante Machinery)

1, Wide range of Komatsu diesel engine parts in stock
2, One-stop service for OEM and high quality replacement for Komatsu excavator, truck and machinery parts
3, Excellent quality with factory price
4, Professional and responsible after-sales service

Product Details

Item	Cylinder Liner
Application	Komatsu Excavator
Engine Model	S6D105, 6D105
Bore Diameter	105mm
Length	223mm
Outer Dimension	118.7mm
Collar Dia	127mm
Collar Thickness	10mm
Flame	1mm
Condition	New
Warranty	12 Month
OEM NO	6137-21-2210, 6136-21-2210, 6137-22-2210

Komatsu Genuime Engine Parts List

N/O	PARTS NAME	OEM NO	FITMENT
1	ENGINE PISTON	6142-32-2110	Komatsu 4D94
2	ENGINE PISTON	6136-33-2110	Komatsu 6D108
3	ENGINE GASKET REPAIR KIT	6159-K1-9900	Komatsu 6D125
4	ENGINE CONNECTING ROD	129900-23000	Komatsu 4D94E
5	ENGINE CONNECTING ROD	6151-31-3200, 6151-31-3101	Komatsu S6D125
6	ENGINE GASKET KIT	6204-K1-2100, 6204-K2-2100	Komatsu 4D95
7	WATER PUMP	6206-61-1503	Komatsu PC120 6D95L
8	WATER PUMP	6204-61-1104	Komatsu 4D95
9	CYLINDER HEAD GASKET	6131-11-1811	Komatsu 4D105
10	CYLINDER HEAD GASKET	6202-12-1820	Komatsu S4D95
11	CYLINDER HEAD GASKET	6137-11-1810	Komatsu S6D105
12	ENGINE GASKET KIT	6131-K1-4000	Komatsu 4D105
13	FULL GASKET SET	6202-K1-3100, 6202-K2-3101	Komatsu S4D95
14	ENGINE GASKET SET	6735-K1-1110, 6735-K2-1110	Komatsu S6D102
15	ENGINE GASKET KIT	6138-K1-0102, 6138-K2-0102	Komatsu S6D1110
16	ENGINE CRANKSHAFT	6130-32-1111, 6131-32-1101	Komatsu 4D95
17	ENGINE CRANKSHAFT	6735-01-1310, 6222-31-1101, 6206-31-1110	Komatsu 6D95
18	ENGINE CRANKSHAFT	6211-31-1110, 6211311110, 6211-31-1010	Komatsu 6D140
19	CYLINDER LINER	6128-21-2216	Komatsu 6D155
20	ENGINE CYLINDER LIER	6138-21-2210	Komatsu 6D110
21	ENGINE CYLINDER LIER	6150-21-2221	Komatsu 6D125
22	ENGINE CYLINDER HEAD	6156-11-1101, 6156111101	Komatsu 6D125
23	ENGINE CYLINDER HEAD	6144-11-1112	Komatsu 4D94
24	CYLINDER HEAD	6204-13-1100	Komatsu S4D95
25	MAIN BEARING	6204-21-8100	Komatsu 4D95 6D95
26	CRANKSHAFT MAIN BEARING	6150-30-3040	Komatsu PC100 PC200
27	TURBOCHARGER	6156-81-8170	Komatsu 6D125
28	ENGINE ALTERNATOR	60-821-9630	Komatsu 6D170
29	OIL COOLER GASKET	6240-61-2560	Komatsu
30	CAMSHAFT COVER GASKET	6240-21-6450	Komatsu
31	V BELT	6251-81-6610, 6251816610	Komatsu 6D125E
32	VALVE COVER GASKET	6754-11-8330, 5367848	Komatsu
33	INJECTION PUMP	6150-71-1170	Komatsu 6D125
34	OIL PUMP	6218-51-2002	Komatsu
35	OIL PUMP	6221-53-1101, 6221-53-1100	Komatsu PC300-6
36	OIL PUMP	6136-51-1002	Komatsu PC200
37	ENGINE CYLINDER SLEEVE	6136-21-2210	Komatsu 6D105
38	OIL PRESSURE SENSOR	6219-81-1960	Komatsu 6D170 6D125
39	FLOATING SEAL ASSY	423-33-00020, 175-27-00121	Komatsu
40	FLEXIBLE HOSE	6754-71-9910	Komatsu PC200-8
41	SEAL	6156-11-8831, 6156118831	Komatsu 6D125
42	CON ROD BEARING	6251-31-3130, 6251313130	Komatsu 6D125
43	CYLINDER BLOCK	6745211190, 6745211190	Komatsu 6D114
44	FUEL FEED HEAD PUMP	6754-71-7200, 6754717200	Komatsu
45	CAMSHAFT	6150-41-1012, 6150411012	Komatsu 6D125 S6D125
46	VALVE PUSH ROD	6150-41-3111, 6150413111	Komatsu 6D125
47	ROCKER ARM BUSH	6150-41-5420, 6150415420	Komatsu 6D125
48	PISTON COOLING NOZZLE	6151-21-1840, 6151211840	Komatsu S6D125
49	CRANKSHAFT SEAL REAR	6151-21-4161, 6151214161	Komatsu S6D125
50	CRANKSHAFT SEAL REAR	6151-29-4150	Komatsu 6D140 S6D140
51	EXHAUSE VALVE GUIDE	6150-12-1370, 6150121370	Komatsu 6D125
52	ENGINE THRUST WASHER	6150-29-8050	Komatsu 6D125
53	ENGINE PISTON RING	150-32-2030, 6150322030	Komatsu 6D125
54	VALVE COVER GASKET	6754-11-8180	Komatsu
55	ENGINE PISTON PIN	6732-31-2410	Komatsu 4D102 6D102
56	CONNECTING ROD BEARING	6210-32-3040, 6210323040	Komatsu 6D10440
57	FUEL INJECTION PUMP	6738-71-1520, 6738711520	Komatsu 6D102
58	FUEL INJECTOR	6271-11-3100, 6271113100, 0445110307	Komatsu PC70-8 PC130-8
59	PRESSURE SENSOR	418-06-36210	Komatsu WA200-6
60	PRESSURE SENSOR	421-06-35121	Komatsu WA380-6 WA470-6
61	ROCKER ARM	6150-41-5500	Komatsu
62	THERMOSTAT	600-421-6630, 6004216630	Komatsu 6D125
63	SHAFT ASSY	6150-41-2401, 6150412401	Komatsu 6D125
64	FRONT CRANKSHAFT OIL SEAL	6151-29-3230, 6151293230	Komatsu 6D140
