Mercedes OM642 Connecting Rod
, Diesel Engine Parts Connecting Rod
, Forged 4030 Steel Connecting Rod

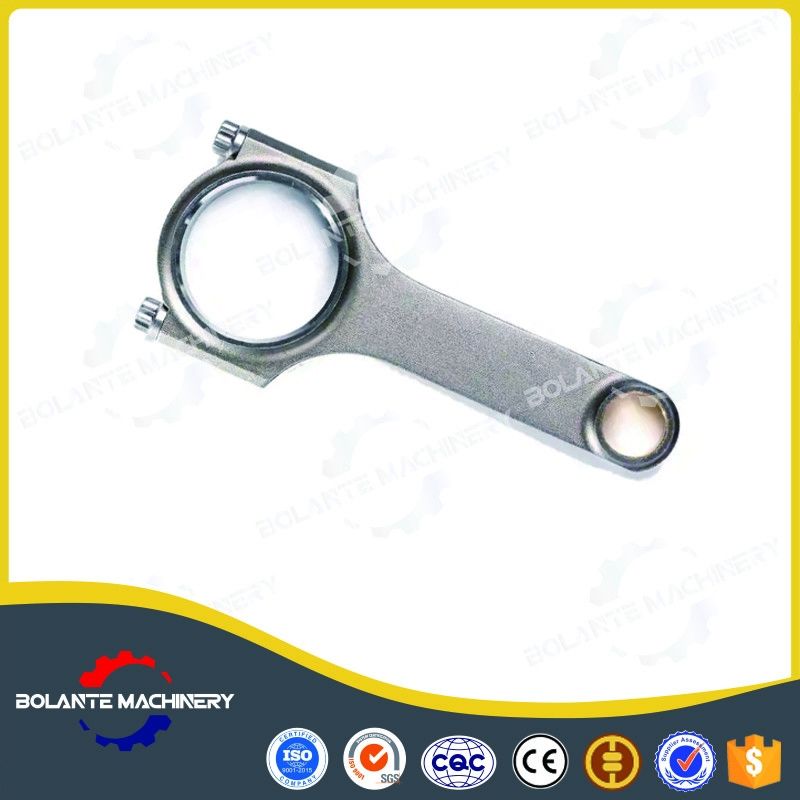

Forged 4030 Steel Diesel Engine Parts Connecting Rod for Mercedes OM642
Engine Connecting Rod
The connecting rod is an essential component of the engine which connects the piston and the crankshaft. It bears high cyclical impact force, inertia force and bending force during the working process.
The connecting rod assembly is composed of connecting rod body, connecting rod big head cover, connecting rod small end bushing, connecting rod big end bearing bush and connecting rod bolts.
| Material |
High Tensile Forged 4340 Steel |
| Surface Treatment |
0.3-0.5mm Shot Peening |
| Balanced Weight |
Optimal +/- 1g per Set |
| B.E and S.E Tolerance |
≤+/-0.00017" |
| Verticality, Parallelism and Distortion |
≤+/-0.00018" |
| Center to Center Distance Tolerance |
≤+/-0.001" |
| HRC |
33-38 |
| Horse Power |
150~200HP per Cylinder |
| Torque of Bolt |
3/8"-75N.M; 7/16"-95N.M |
| Rate of NL GROUP Bolt |
226,000psi |
Engine Connecting Rod Features
1, High-strength
2, Lightweight
3, High toughness and fatigue resistance
Technical Features:
* Shot Peening for improved fatigue life
* Magnaflux Inspection guarantees the consistency of the forged material meets our high quality standard
* Multi Stage Heat Treat for maximum strength, dimensional stability, and fatigue life.
* CNC machining for superior tolerances as tight as 0.0003"
* Optimal balancing for weight matched sets (+/- 1g)
* Max. center to center length is 180mm
* High tensile steel 4340
* Combination tested to over 1000HP+
Main Bearing/Con Rod Bearing for Mercedes-Benz Diesel Engines
OM355, OM366, OM441, OM441LA, OM442LA, OM422, OM444, OM447, OM364LA, OM366A, OM601, OM602, OM603, OM314, OM352, OM360, OM402, OM403, OM404, OM421, OM423, OM424, OM443LA, OM615, OM616, OM617, OM501 OM502 OM471, OM904, OM924 etc.
Our Main Products for Mercedes-Benz Diesel Engines
Cylinder Head, Cylinder Block, Crankshaft, Camshaft, Cylinder Head Gasket, Turbocharger, Connecting Rod, Rocker Arm, Main & Rod Bearing, Cylinder Sleeve, Piston, Piston Ring, Water Pump, Oil Pump, Engine Belt Tensioner, Air Filter, Fuel Filter, Full Gasket Kits, Alternators, Starter, etc.
Packing & Delivery
Strong and durable carton box with inner side anti-rust plastic bags.
Advantage
1, Competitive price
2, Long lasting and reliable working life time
3, Premium quality standard guaranteed
4, Standard packing or according customers' specification required.
5, Short production cycle
6, Quickly delivery and wide varieties
7, Able to produce according customers' specification with technical drawing
Mercedes Benz OEM Diesel Engine Parts & Replacement Engine Parts Available.
